Doughty Atom 90 Degree Fixed Coupler 25-38mm

90 Degree Fixed Coupler 25mm/32mm/35mm/38mm

The Doughty Atom 90 Degree Fixed Coupler provides firm and quick fixing between two perpendicular bars with a smaller diameter.

Manufactured from high tensile Aluminium Extrusion, this coupler is designed to fit tubes with a smaller diameter (less than the standard tube diameter - 50mm).

The coupler is also designed to attach to round tubes or truss chords and to suspend equipment and luminaires. Broadly applicable in the theatre, film, TV and photographic industries.

Swivel and Parallel versions are also available. For any inquiries, please contact us via chat.

Spec Sheet - User Manual - Cert

---

Features:

• SWL: 100 kg

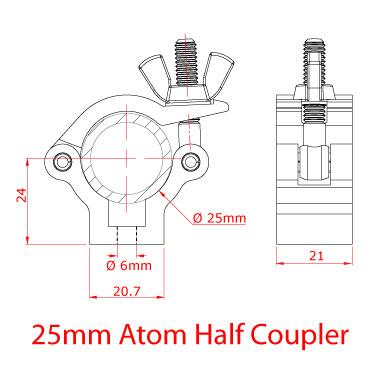

• Width:
  - 25mm Couper: 21mm
  - 32mm Coupler: 30mm
  - 35mm Coupler: 30mm
  - 38mm Coupler: 30mm
• Tube diameter: 25 mm / 32mm / 35mm / 38mm
• Tube Centre Distance:
  - 25mm Coupler: 47.5mm
  - 32mm Coupler: 55mm
  - 35mm Coupler: 64mm
  - 38mm Coupler: 60mm
• Finish: Available in both aluminium and black
